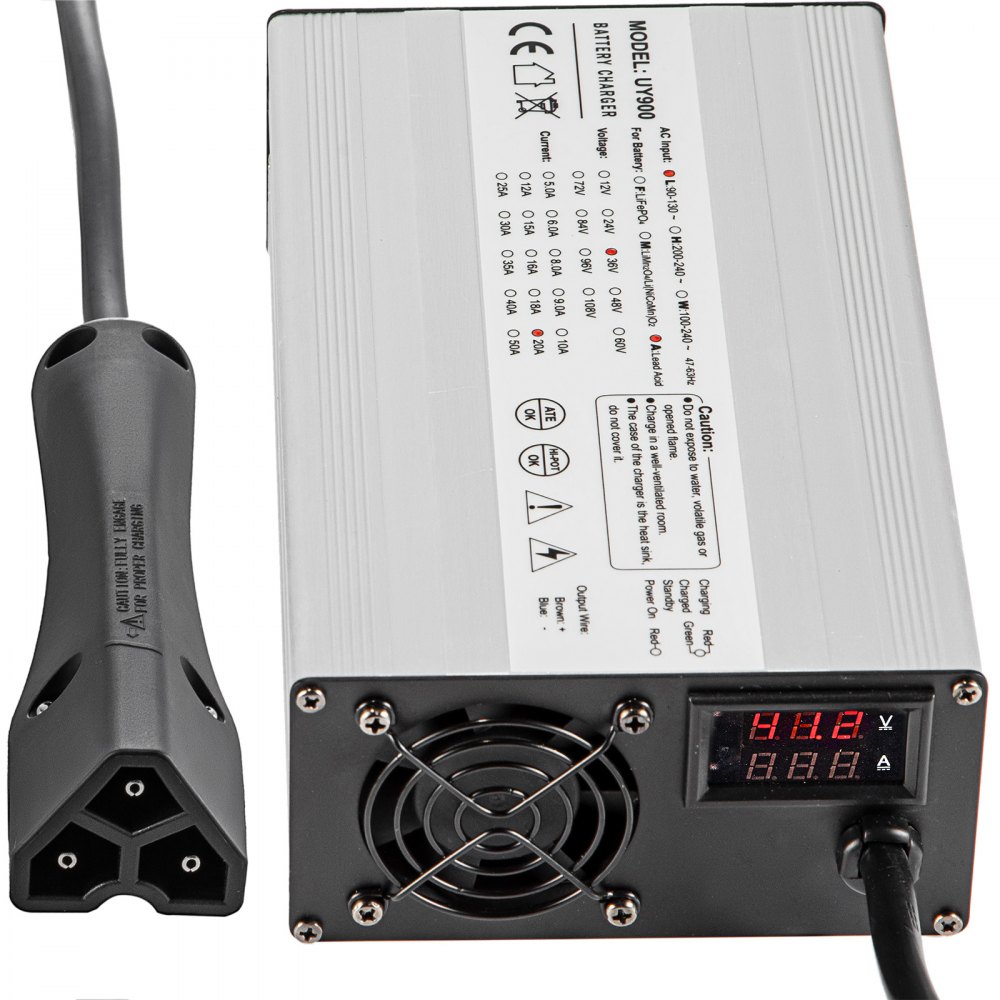

48V 15A & RXV Plug Golf Cart Charger
The listing is about a 48V 15A golf cart battery charger with the RXV Plug. This club car charger is equipped with an all-aluminum alloy casing and three-stage charging mode with trickle mode charging to achieve higher working efficiency. LED screen and 2 LED indicator lights are applied for monitoring the charging status indication. It is a practical and powerful charger for golf carts, e-bikes, e-scooters, etc.
-
Note: Don`t worry when the battery voltage exceeds 48V because it is 58.8V when it is fully charged.
-
(1) The charger displays two red lights under normal charging;
-
(2) When a red and green light is on, the battery is full;
-
(3) Fully charging a brand new 60AH battery needs 4-6Hours, it depends on the capacity or aging.
-
3-Stage Charge Design
-
Aluminum Alloy Housing
-
Various Protections
-
Multiple Application
Advanced Control Chip
A high-performance IT chip is applied to offer optimal charge experience and achieve high output stability, which will charge faster and more accurately. Efficiency is more than 85%, and the connection type is RXV Plug.

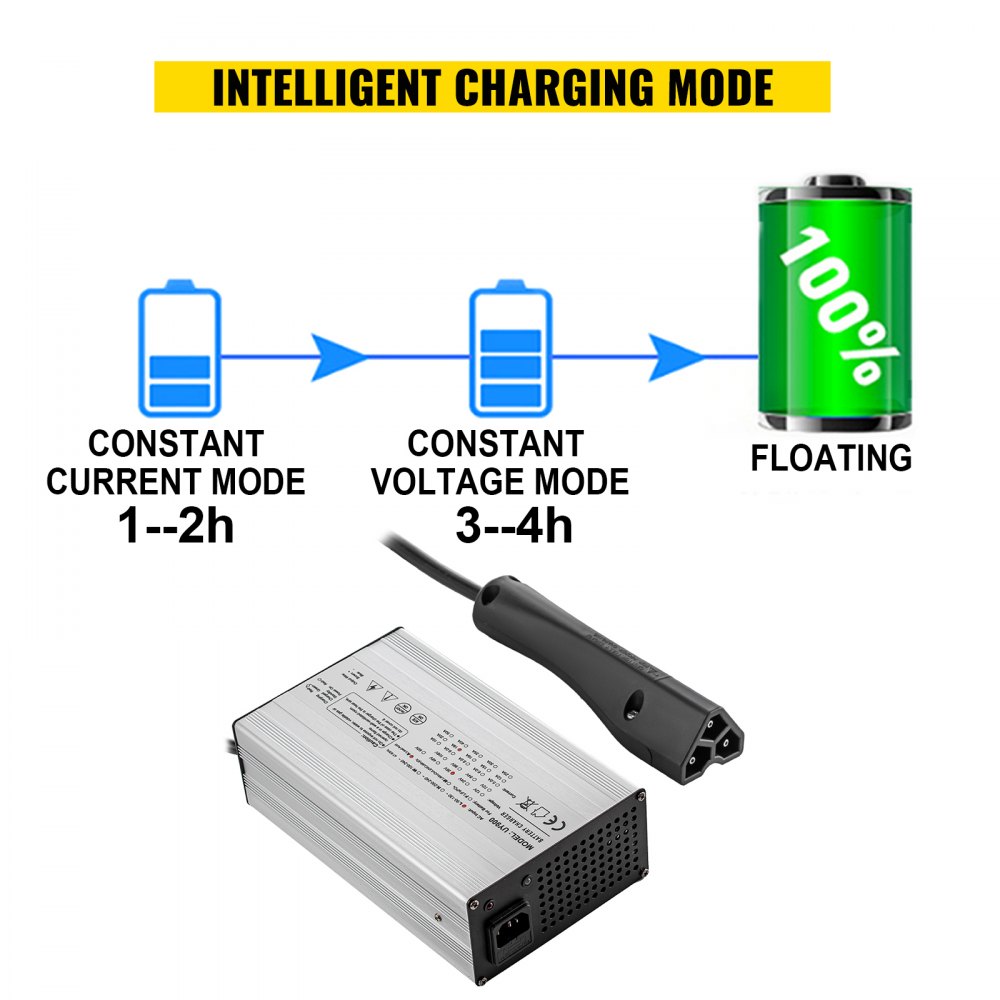

Intelligent Charging Mode
The trickle charge mode prevents overcharging and keeps your batteries in tip-top condition. 3-Stage charging mode indicates Stage 1: CC(Constant Current), Stage 2: CV(Constant Voltage), Stage 3: Floating.

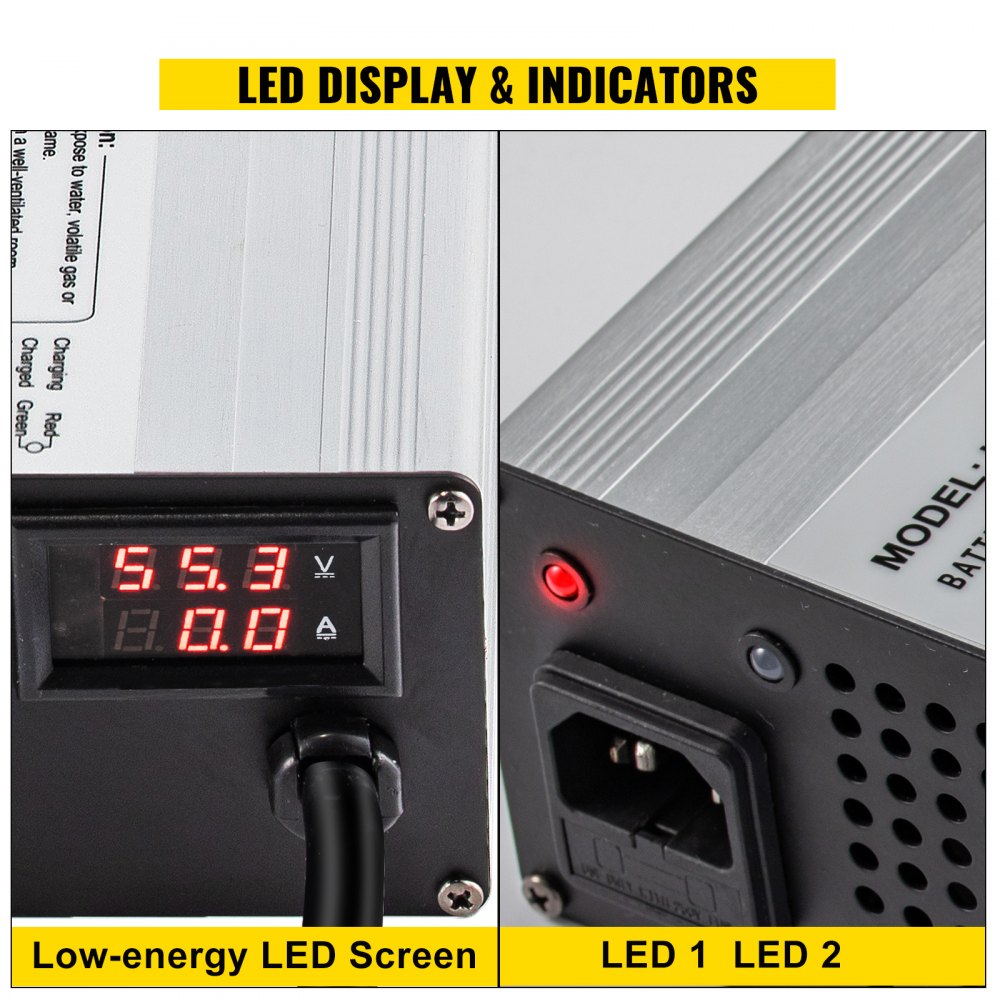

LED Display & Indicators
With an LED screen and 2 LED indicator lights, it`s convenient and straightforward for you to check the battery charger`s condition. LED1 RED indicates AC power on. The LED2 RED indicates charging, and the LED2 GREEN indicates charging fully.

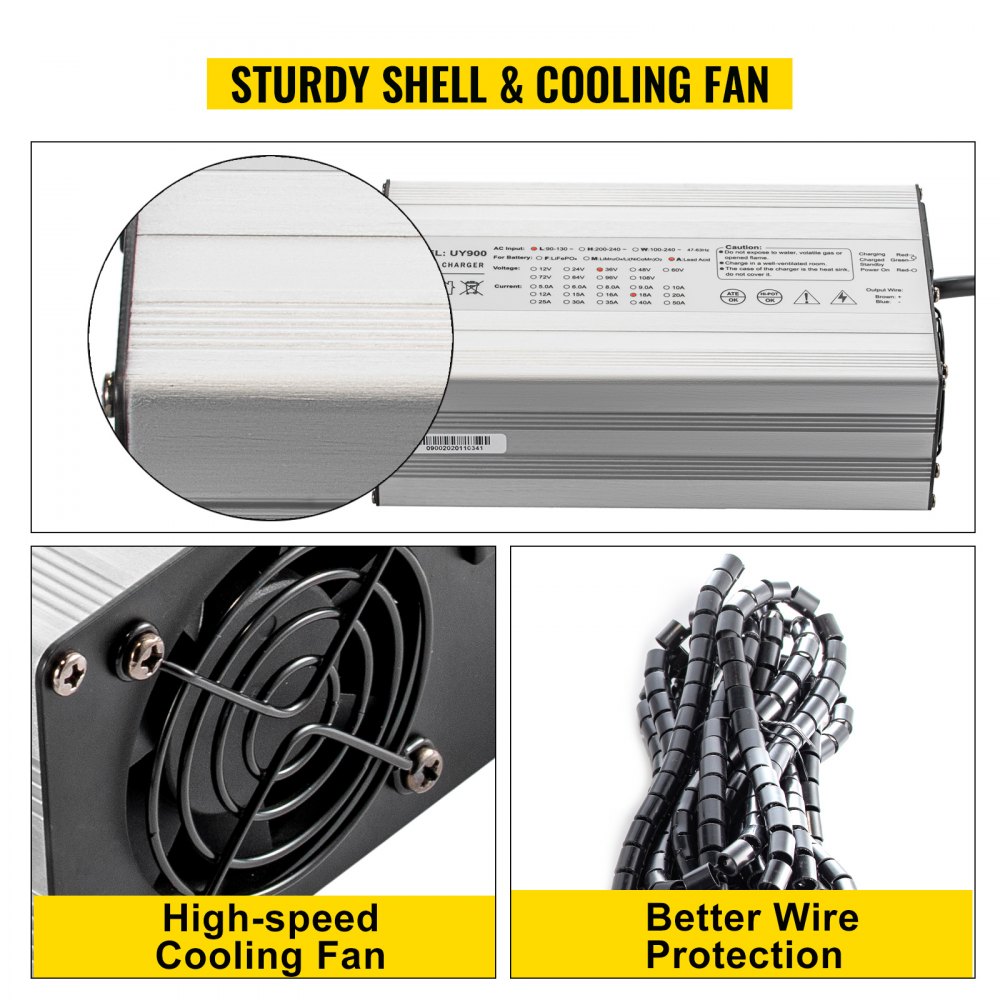

Sturdy Shell & Cooling Fan
The golf cart charger is made of aluminum alloy material, which has a high strength to resist compression and deformation. A built-in cooling fan effectively reduces the operating heat. Extra wire protective casing protects the power cord well.
Multiple Electric Protection
There are some main protection measures for this golf cart electric charger: short circuit protection, over-voltage protection, over-temperature protection, reverse polarity protection, over charging protection, over current protection.
Wide Application
This golf cart battery charger is suitable for charging Lead Acid or Silicon type batteries. It is widely used for all Golf carts with a 36V system, such as E-Z-GO, Yamaha, Club Car, Star, Taylor Dunn.
Specifications
-
Battery: Lead Acid Battery
-
Input Voltage: 110V
-
Output Voltage: 48V (58.8V~48V)
-
Output Current: 15A
-
Shell Material: Aluminum Alloy
-
Charger Plug: Triangle 3-Pin, RXV Plug
-
Efficiency: ≥ 85%
-
Color: Silver Finish
-
Charge Period: 4-6 Hours
-
Ventilation: Fan Cooling
-
2 LEDs: LED1 Red (power on), LED2 Red/Green (charging/full)
-
Charging Mode: 3-Stage (CC, CV, Floating)
-
Compatible With: E-z-Go, Club Car, Yamaha, Star, Taylor Dunn
-
Dimensions (L x W x H): 249 x 134 x 69 mm/9.8 x 5.28 x 2.72“
Package Content
-
1 x Golf Cart Battery Charger
-
1 x Cable Protection
-
2 x Fuses
-
1 x Power Cord
