Swivel Multipurpose Bench Vise
Sturdy Material & & 30 kN Clamping Force & Simple Operation
A 6-inch rotating bench vise is the ideal industry heavy-duty vise that prevents water, dirt & rust. It features with swivel head and base and can be used for home craftsmen, in the workshop, and even can be outdoor used. If the vise can be normally operated, it will be lifetime use.
-

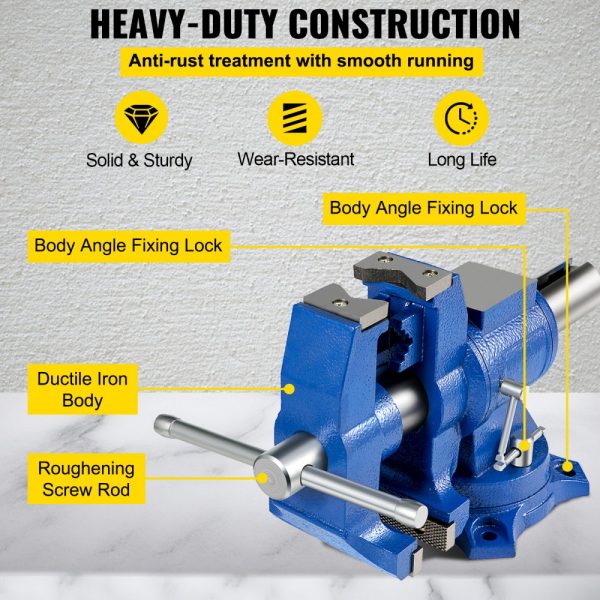

Heavy-duty Construction
-

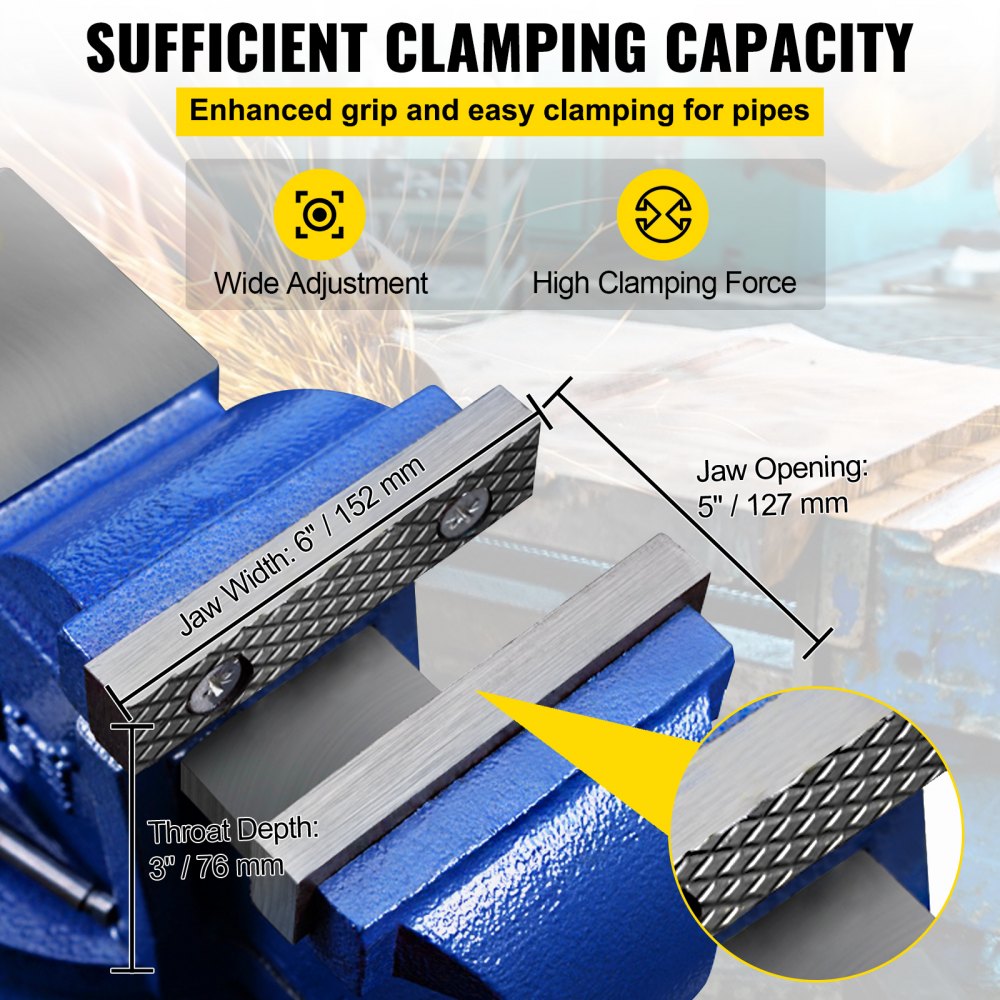

Sufficient Clamping Capacity
-
360 Degrees Rotation
-
Precision & Hardness
Self Align Pipe Jaws
Our bench vise has an automatic alignment pipe clamp, which can provide more contact points for the workpiece, reduce damage to the workpiece during operation, and obtain the maximum clamping force.

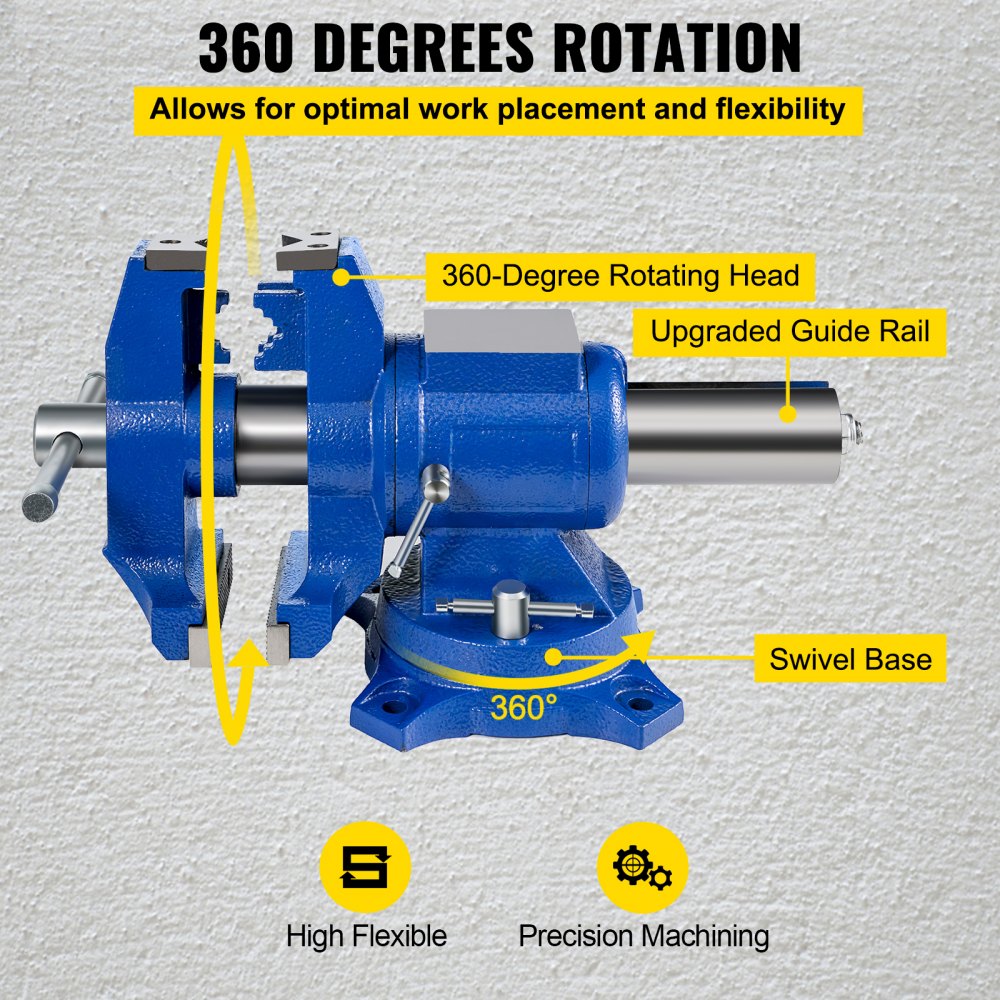

Rotating Base & Head
The bench vise base can be rotated up to 360 degrees with two lockdowns adjusts the direction of the jaws for proper placement. Our vise head can be rotated by 360 degrees vertically for extra versatility.
Powerful Double Clamps
The mounted vise features two sets of jaws for gripping parts: Machinist-Jaws, and V-Jaws. Jaws use high strength steel for superior clamping force, in which maximum clamping force can reach 30 kN.
High Strength Quality
Our bench vice is a rugged and durable rotating vise on the market. Unlike other rotating vises, our vise material is 60,000 PSI Ductile Iron. The heavy-duty design makes it more reliable and has a longer service life.
High Precision Design
Upgraded lead screw with deep thread has good rust prevention, smoothly rotating, and the operation is simple. Our vise guide rail is precisely ground, and the clamping and tightening are smooth and fast.

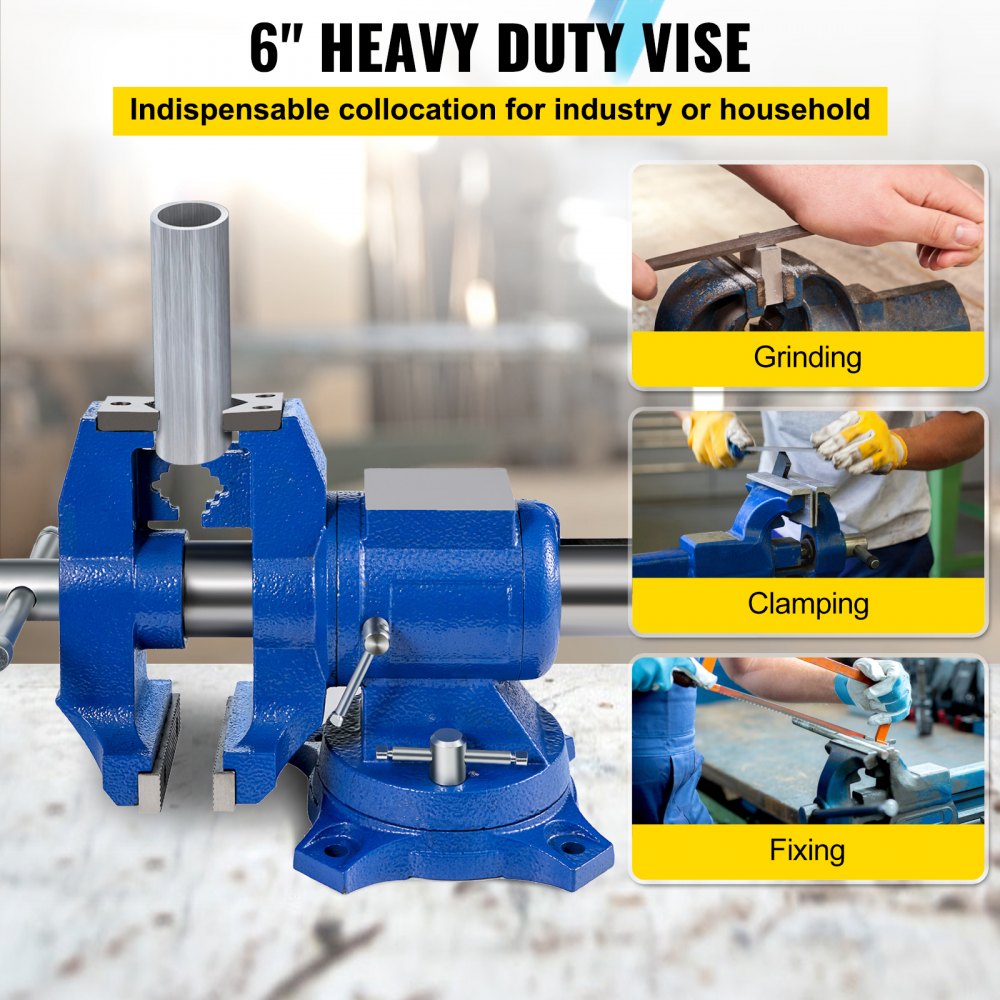

Wide Application
Our 5-inch rotating bench vise is the ideal industry heavy-duty vise. It usually applies to machine tool processing, home craftsmen, in the workshop, and even can be outdoor used for clamping or fixing the workpiece.
Specifications
-
Material: Ductile Cast Iron
-
Jaws Width: 6“ / 152 mm
-
Jaws Opening: 5“ / 127 mm
-
Throat Depth: 3“ / 76 mm
-
Clamping Force: 30 kN
-
Hardness: 46 – 52 HRC
-
Net Weight: 44 lbs / 20 kg
-
Item Dimensions(L x W x H) : 17.7“ x 7“ x 9.8“ / 45 x 18 x 25 cm

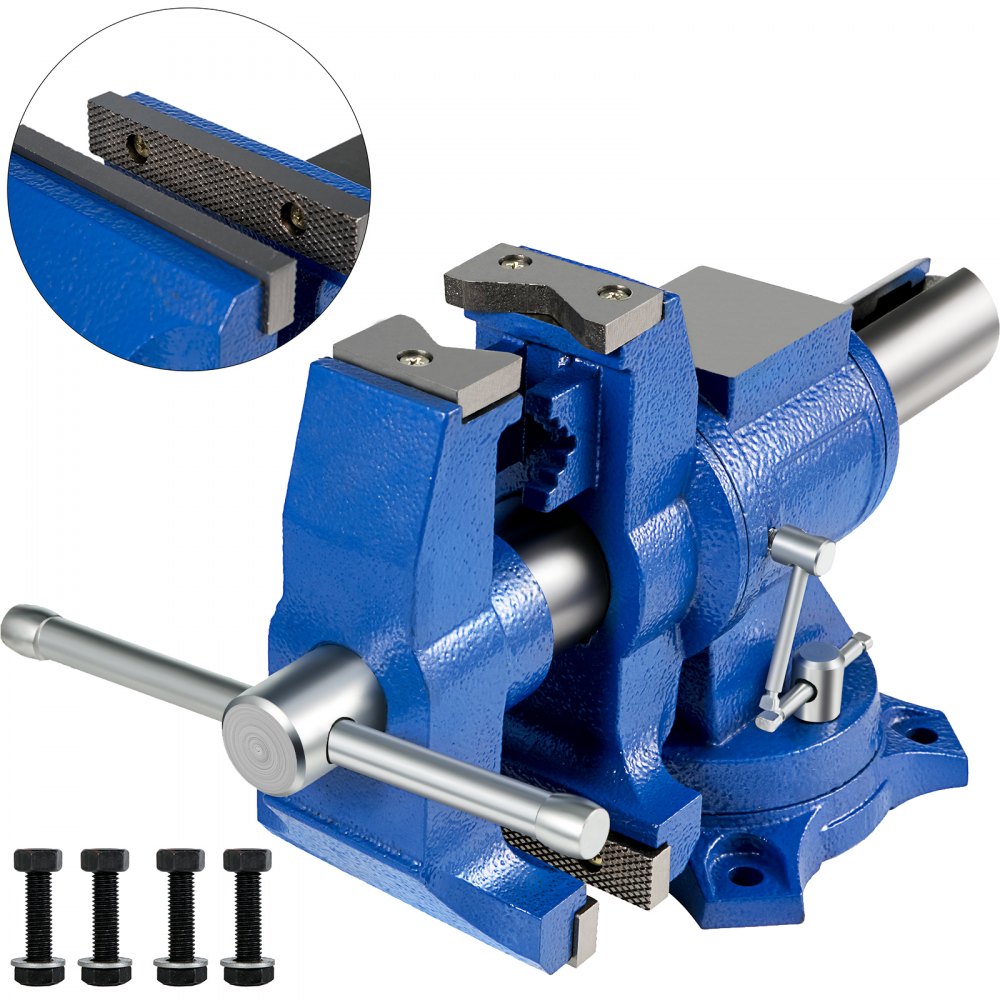

Package Content
-
1 x Bench Vise
-
4 x Screws
