K72-125 4-Jaw Independent Lathe Chuck
Large Clamping Range & Flexible Adjustment & w/ Chuck Key
The 5-inch independent lathe chuck is composed of a strong cast iron body and four hardened steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle. It is ideal for your lathe.
-
Premium Material
-
Reversible Jaw Set
-
Enhanced Flexibility
-
High Precision

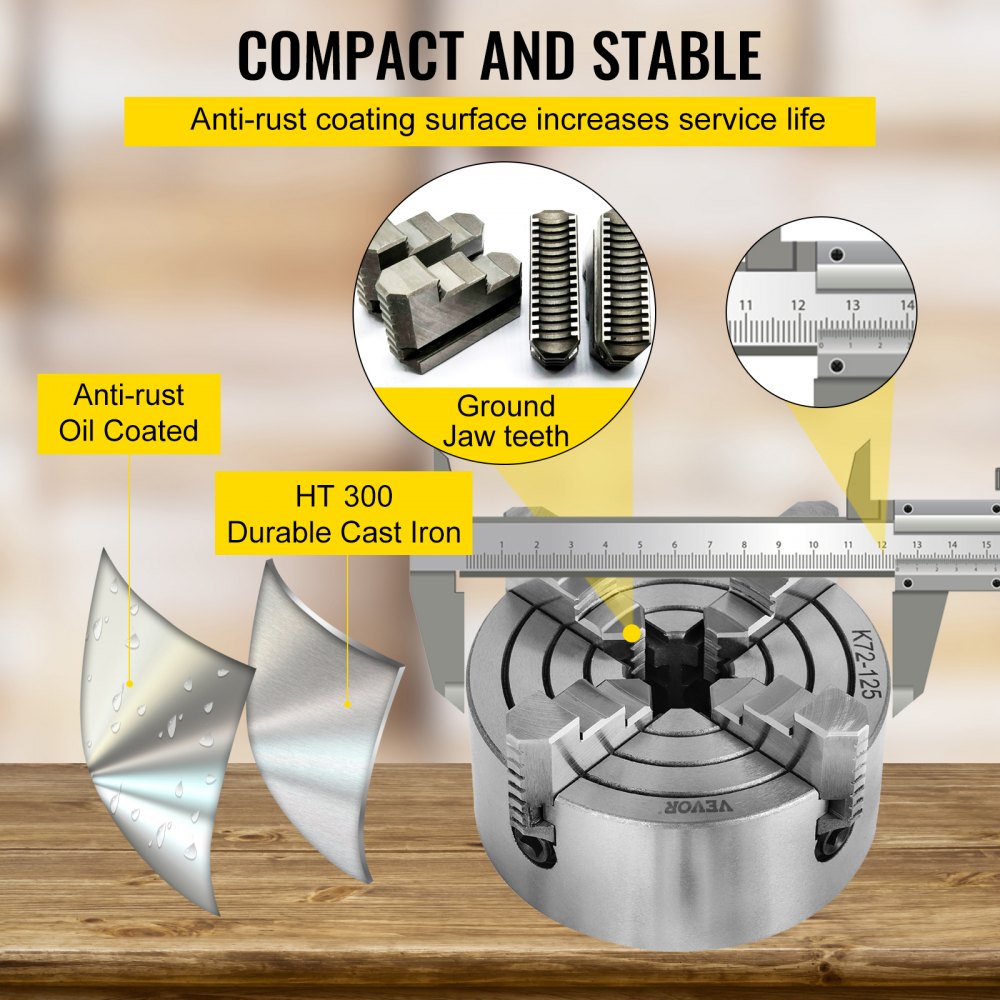

Quality Cast Iron
The lathe chuck body is made of high-quality cast iron that is rigid and durable, and it looks low-profile.
4 Reversible Jaws
The chuck jaws can step either inward or outward so that it’s easy for you to deal with various materials.
With Great Accuracy
The K72 lathe machine chuck works with few vibrations, ensuring you will get accurate finished parts.
Independent Jaws
The mini lathe chuck features four independent jaws. Each of them is set respectively and can stop in different places.
Easy to Operate

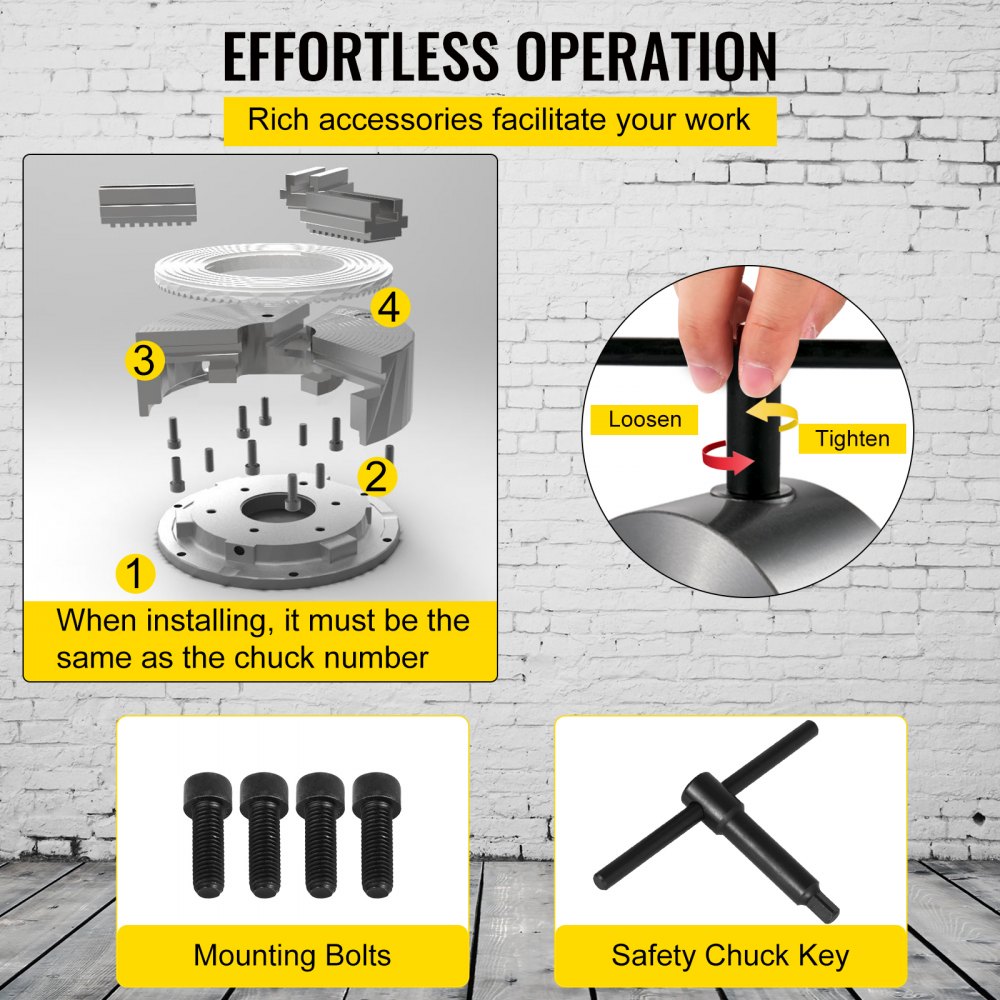

The lathe collet chuck comes with a T wrench, with which you can easily loosen or tighten the jaws.

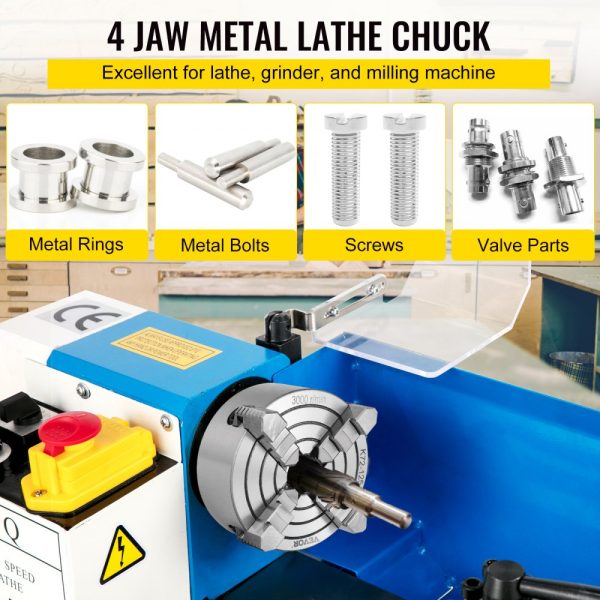

Wide Application
The 4-jaw independent chuck is light and convenient, and it is the perfect choice for your lathe machine.
Specifications
-
Chuck Body Material: Cast Iron
-
Color: Silver
-
Jaws Material: 40CR Steel
-
Bevel Gear Material: 40CR Steel
-
Pinions Material: 20CR Steel
-

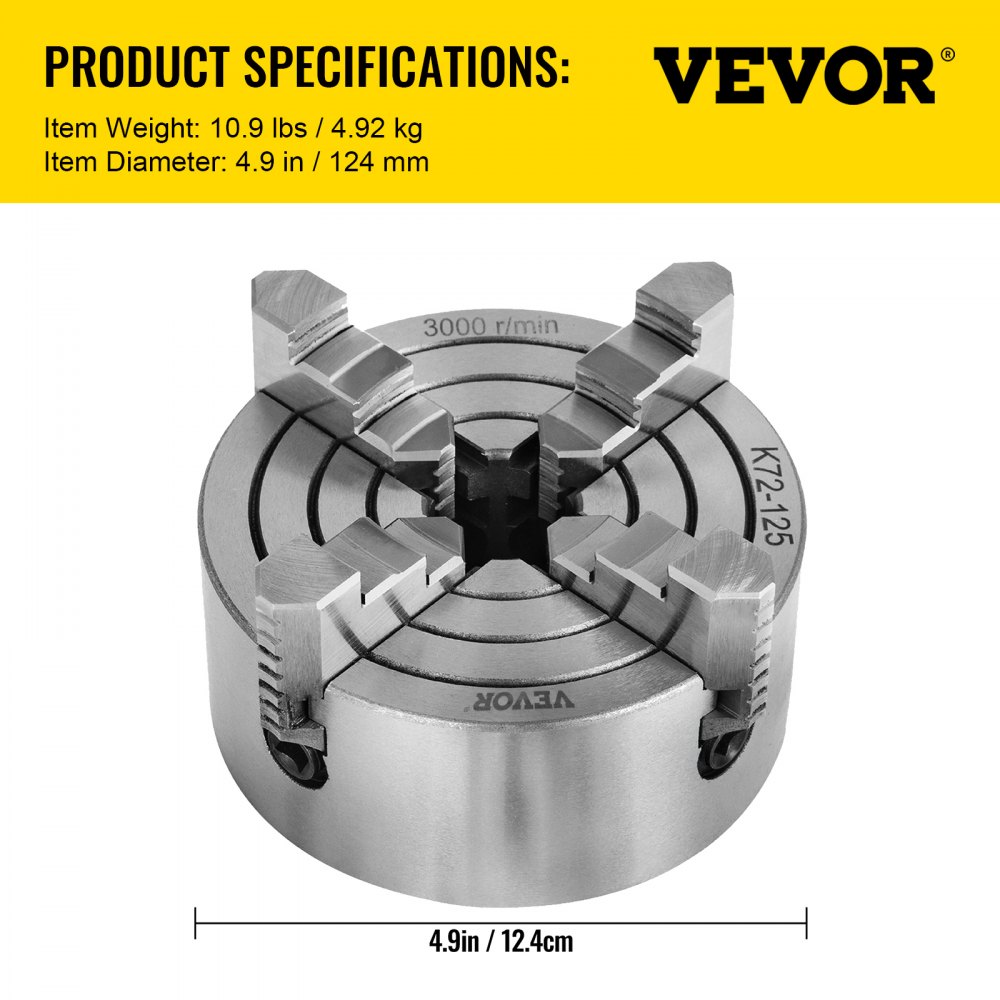

Chuck Diameter: 4.92″ / 125 mm
-
Center Hole: 1.2″ / 30 mm
-
Circle Diameter: 4.3″ / 108 mm
-

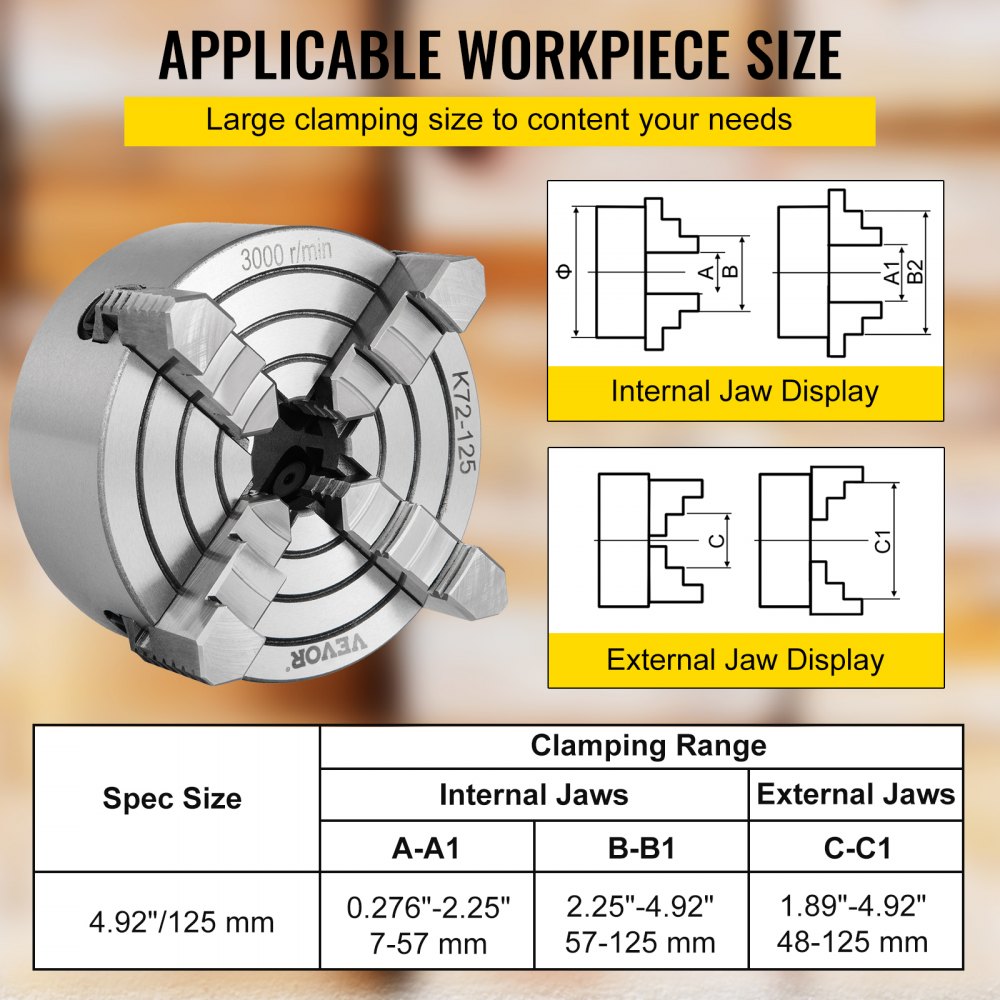

Internal Jaw Clamping Range: 0.276″-2.244″ / 7-57 mm
-
External Jaw Clamping Range: 1.89″-4.92″ / 48-125 mm
-
Tolerance: ≤ 0.003″ / 0.07 mm
-
Accuracy: 0.002″ / 0.051 mm
-
Maximum Speed: 3000 RPM
-
Item Weight: 10.9 lbs / 4.92 kg
-
Package Dimensions (L x W x H): 5.9″ x 5.5″ x 3.93″ / 15 x 14 x 10 cm

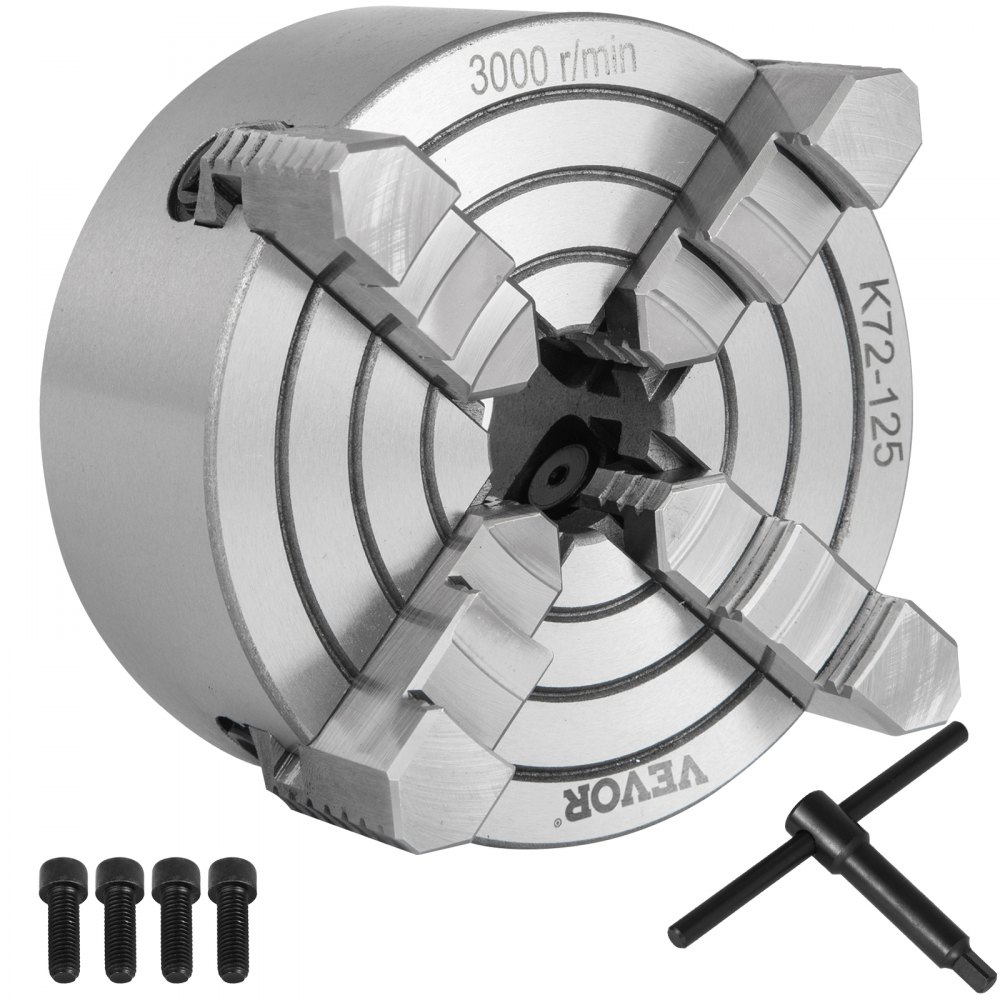

Package Content
-
1 x Lathe Chuck
-
4 x Mounting Screws
-
1 x Chuck Key
